In modern construction, Safety is no longer just "compliance" (checklists); it is Behavioral Science and Predictive Analytics. Innovation is no longer just "cool gadgets"; it is Data Integration and Risk Mitigation.

1. Safety: The Science of Human Factors

We have moved beyond "Safety First" (a slogan) to "Safety by Design" (a system).

The Concept: The Hierarchy of Controls

This is the scientific standard for mitigating risk, ranked from most effective to least effective.

  1. Elimination: Physically remove the hazard (e.g., pre-fabricating walls on the ground to eliminate fall hazards).

  2. Substitution: Replace the hazard (e.g., using a non-toxic solvent).

  3. Engineering Controls: Isolate people from the hazard (e.g., guardrails, trench boxes).

  4. Administrative Controls: Change the way people work (e.g., rotating shifts to prevent heat exhaustion).

  5. PPE: Protect the worker with gear (hard hats, vests). Note: This is the least effective method because it relies on human behavior.

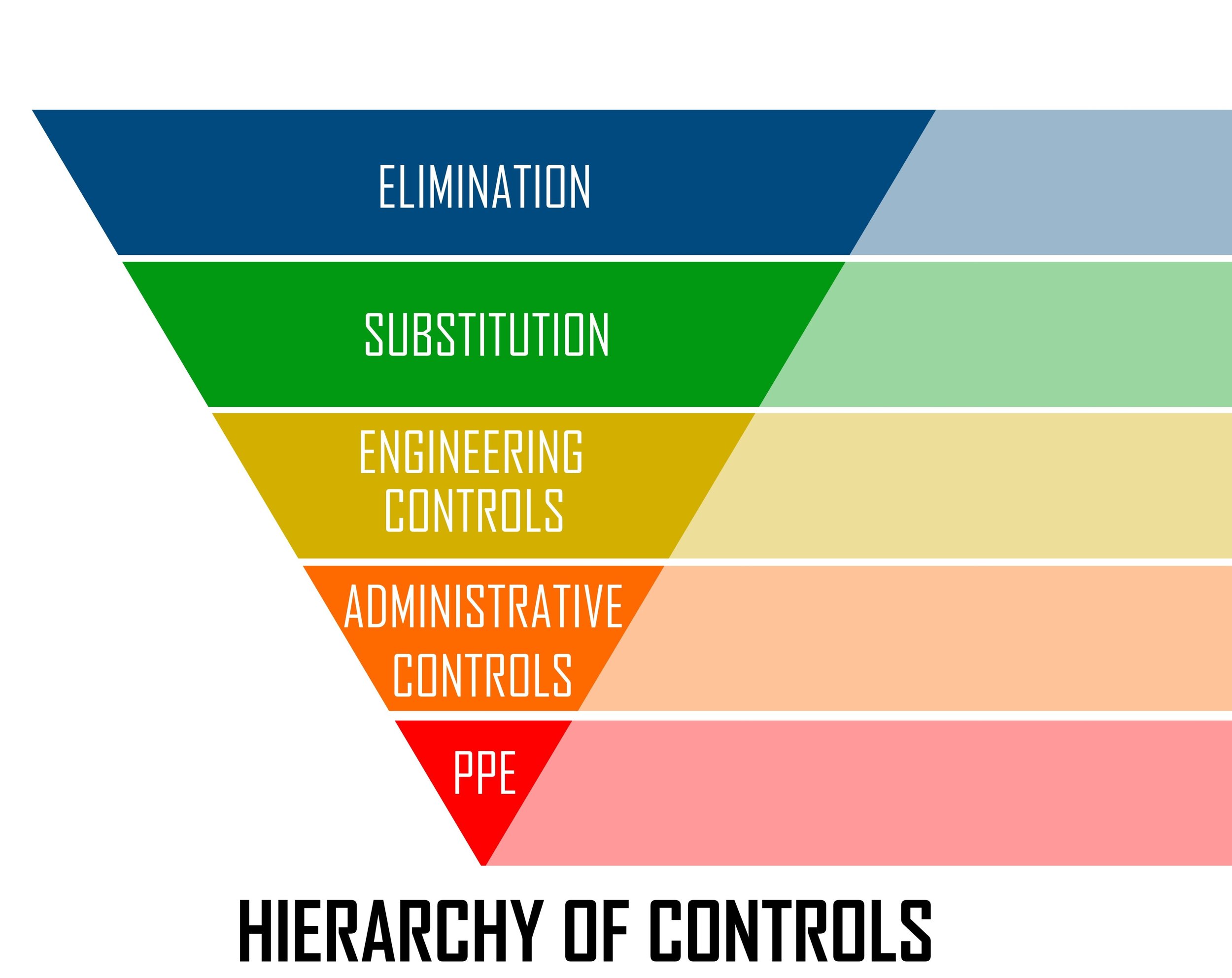

Safety By Design - A funnel diagram illustrating a hierarchy of controls with levels: Elimination, Substitution, Engineering Controls, Administrative Controls, PPE, from top to bottom, each in a different color.

The Innovation: Predictive Safety (Leading Indicators)

Old safety looked at Lagging Indicators (Total Recordable Incident Rate - TRIR). That is looking at the rear-view mirror—counting accidents after they happen. New safety uses Leading Indicators:

  • Observation Frequency: How many "near misses" are reported? (High reporting = High trust culture).

  • Fatigue Monitoring: Smart wearables that track heat stress and heart rate.

  • AI Video Analysis: Cameras on cranes that detect if a worker is standing in a blind spot and auto-alert the operator.

2. Innovation: The Digital Twin & Reality Capture

Innovation in construction is about closing the gap between the "Model" (what we designed) and the "Reality" (what we built).

The Science: Building Information Modeling (BIM)

BIM is not 3D drafting; it is a relational database.

  • Clash Detection: Before we dig a hole, the computer simulates the building. It finds where the HVAC duct hits the steel beam.

    • The Science: Spatial indexing algorithms check millions of geometric intersections in seconds.

  • 4D Scheduling: We add "Time" as a dimension. We simulate the construction sequence to see if the crane has room to swing without hitting the new power lines.

The Tool: Drone Photogrammetry (Reality Capture)

  • The Science: Drones take thousands of overlapping photos. Software identifies "tie points" (pixels that appear in multiple photos) to triangulate 3D coordinates (X, Y, Z).

  • The Result: A Point Cloud. A digital map of the site accurate to within 1/10th of an inch.

  • The Value: We overlay the Drone Map (Reality) on top of the BIM Model (Plan).

    • Example: We can see instantly if the utility trench was dug 6 inches to the left of where the plan says the pipe should go.

3. High-Tech PPE & The Connected Worker

The worker is becoming a data node in the Innovation network.

The Science: IoT (Internet of Things)

  • Smart Helmets: Equipped with accelerometers. If a worker falls, the helmet detects the rapid deceleration and impact, automatically sending a GPS alert to the safety manager.

  • Geo-Fencing: Wearable beacons on vests vibrate if a worker steps into a "Danger Zone" (e.g., the swing radius of an excavator). This effectively creates an invisible force field around heavy iron.
