Premier Wet Utilities & Underground Infrastructure Contractor – Phoenix & Arizona Statewide
For commercial developers, general contractors, and municipalities in Arizona, Pinnacle Heavy Civil is the definitive choice for complex wet utility installation. From deep sanitary sewer excavations to mission-critical fire loops, we deliver precision underground infrastructure that keeps projects on schedule.
We provide turnkey wet utility solutions across the Greater Phoenix area, including Mesa, Buckeye, Goodyear, and Chandler. Our crews are experts in MAG (Maricopa Association of Governments) specifications, ensuring every pipe, valve, and connection meets strict municipal code requirements.
Core Wet Utilities Services for Hyperscale & AI
Chilled Water Distribution Systems 72–120 inch headers, underground vaults, thrust blocks for 300 psi surges
Cooling Tower Basins & Structural Pads 10–20 million gallon cast-in-place basins with epoxy-lined waterproofing
Vertical Turbine Pump Stations 20,000–50,000 HP stations, 200,000+ GPM, canned or wet-pit designs
Process Water Treatment Plants RO, filtration, and chemical feed systems built concurrent with halls

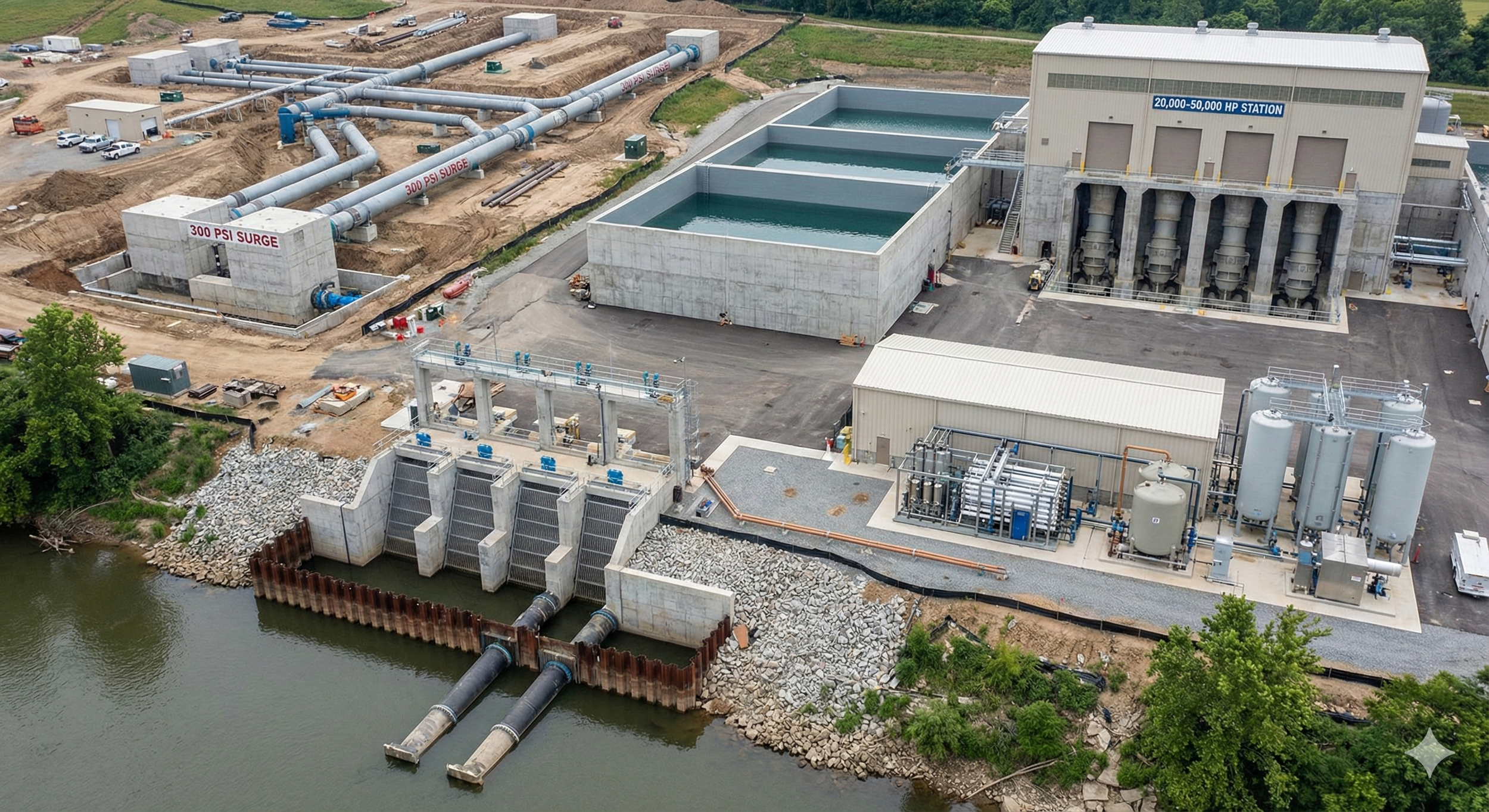

River / Lake Intake Structures 300,000 GPM screened intakes, cofferdams, and 96-inch submerged piping
Wastewater Heat Rejection & Zero-Discharge Systems Blowdown recovery, evaporative ponds, and mechanical draft towers
Fire Protection & Hypochlorite Systems 10,000 GPM electric + diesel fire pumps tied into chilled water redundancy
Our Core Wet Utility Services
We specialize in the installation, replacement, and repair of the three critical wet utility pillars:
While earthwork is about static forces (soil holding weight), utilities are about Fluid Dynamics (moving liquids) and Hydrostatics (pressurized liquids). We are essentially building a circulatory system underground, and it is governed by the laws of gravity, friction, and momentum.
1. Gravity Systems (Sewer & Storm): The Physics of Open Channels
Sewer and storm drain pipes are rarely "full." They operate as "open channels," meaning there is an air gap at the top of the pipe. The water isn't pushed by a pump; it slides downhill.
The Science: Manning’s Equation
Civil engineers design every single pipe run using Manning’s Equation. This formula calculates how much water a pipe can carry based on its physical properties.
Where:
V (Velocity): How fast the water moves.
n (Roughness Coefficient): How smooth the pipe is. (PVC is smooth, concrete is rougher, corrugated metal is very rough). Friction slows water down.
R (Hydraulic Radius): The shape of the water inside the pipe.
S (Slope): The steepness of the pipe.
The "Goldilocks" Velocity: 2 FPS
The critical constraint in sewer design is velocity. We need a "Goldilocks" speed—not too fast, not too slow.
Too Slow (< 2 feet per second): Solids (waste) settle out of the water and accumulate on the bottom of the pipe. Eventually, this causes a blockage. This is why we have minimum slopes (e.g., 1% or 2%).
Too Fast (> 10 feet per second): The water becomes abrasive. It acts like sandpaper ("scouring"), stripping away the pipe material over time. It can also cause hydraulic jumps that blow manhole covers off.
2. Pressure Systems (Domestic & Fire Water): Hydrostatics & Momentum
Water lines are different. They are pressurized (usually 60–80 psi) and run full. The science here shifts to Bernoulli’s Principle and Newton’s Third Law.
The Science: Friction Loss
As water rubs against the inside of a pipe, it loses energy (pressure) to heat. This is Head Loss.
If you try to push 1,000 gallons per minute (GPM) through a narrow 4-inch pipe, the friction is massive, and the pressure at the end of the line drops to zero.
If you push that same 1,000 GPM through a 12-inch pipe, the water moves slower, friction is lower, and you maintain high pressure.
This is why Fire Lines are always huge (6"–10")—we need volume without losing pressure to friction.
Thrust Blocks: Newton’s Third Law
Water has mass. When moving water hits a 90-degree elbow in a pipe, it wants to keep going straight (Momentum).
The Force: The water exerts a massive dynamic force on the fitting.
A 12-inch pipe at 100 psi hitting a 90° elbow creates a "kick" of nearly 16,000 lbs (8 tons) of force.
The Reaction: If you don't restrain it, the pipe will blow apart at the joints.
The Fix: We pour a concrete Thrust Block behind the elbow. This transfers the kinetic energy of the water into the static mass of the soil. The concrete spreads the force over a large enough area of dirt so the soil doesn't yield.
3. The Trench: Soil-Structure Interaction
Placing the pipe is not just about digging a hole. The pipe and the soil must act as a composite system.
Flexible vs. Rigid Pipe Mechanics
Rigid Pipe (Concrete/RCP): The pipe itself is strong enough to hold the weight of the earth above it. The pipe resists the load.
Flexible Pipe (PVC/HDPE): The pipe is weaker than the soil load. It is designed to squash slightly (deflect) into an oval shape.
The Science of "Haunching": As the PVC deflects downward, it pushes outward at the sides (the haunches). The strength comes from the Passive Soil Resistance of the bedding material pushing back against the sides of the pipe.
Why it matters: If you don't compact the dirt under the curvature of the pipe (the haunch), the pipe has nothing to push against. It will deflect too much and collapse.
4. Manholes: Buoyancy (Archimedes' Principle)
Deep sewer manholes face a hidden enemy: Groundwater.
The Physics: A concrete manhole is a hollow vessel. If the water table rises above the bottom of the manhole, the water exerts an upward force (Buoyancy) equal to the weight of the water displaced.
The Risk: If the empty manhole is lighter than the water it displaces, it will float out of the ground like a boat, destroying the connections.
The Fix: We use Anti-Flotation Slabs. We pour a heavy concrete ring around the base of the manhole to increase its total mass ($Mass > Displacement$) and anchor it into the soil.
Sanitary Sewer Installation
Reliable wastewater infrastructure is the backbone of any development. We handle the complexities of deep excavation and gravity flow systems.
Mainline sewer installation (PVC, Ductile Iron, SDR).
Sewer tap and lateral connections.
Manhole installation and adjustments.

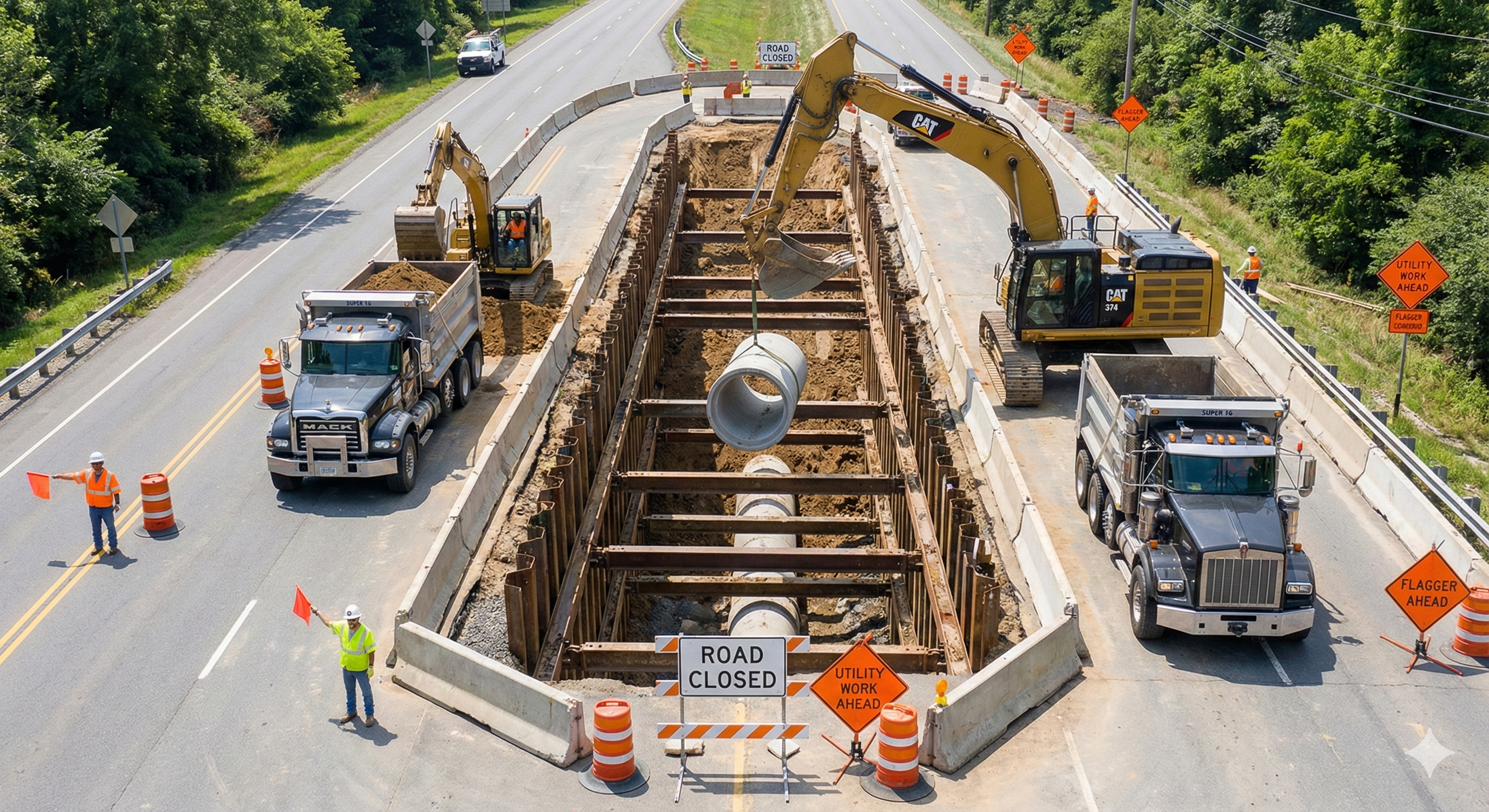

Lift station construction for municipal and private developments. Storm Drain & Flood Control
Arizona’s monsoon season demands robust stormwater management. We install high-capacity systems designed to handle rapid water displacement.
Reinforced Concrete Pipe (RCP) and corrugated metal piping.
Catch basins, curb inlets, and scuppers.
Underground retention systems and stormwater storage tanks.
Box culverts and headwalls.
Domestic Water & Fire Line Infrastructure
We ensure reliable water delivery and fire suppression supply for industrial and commercial facilities.
Water Main Installation: Domestic water mains, service lines, and metering vaults.
Fire Protection: Dedicated underground fire loops, hydrants, and FDC (Fire Department Connection) assemblies.
Backflow Prevention: Installation, testing, and enclosures for all pipe sizes.

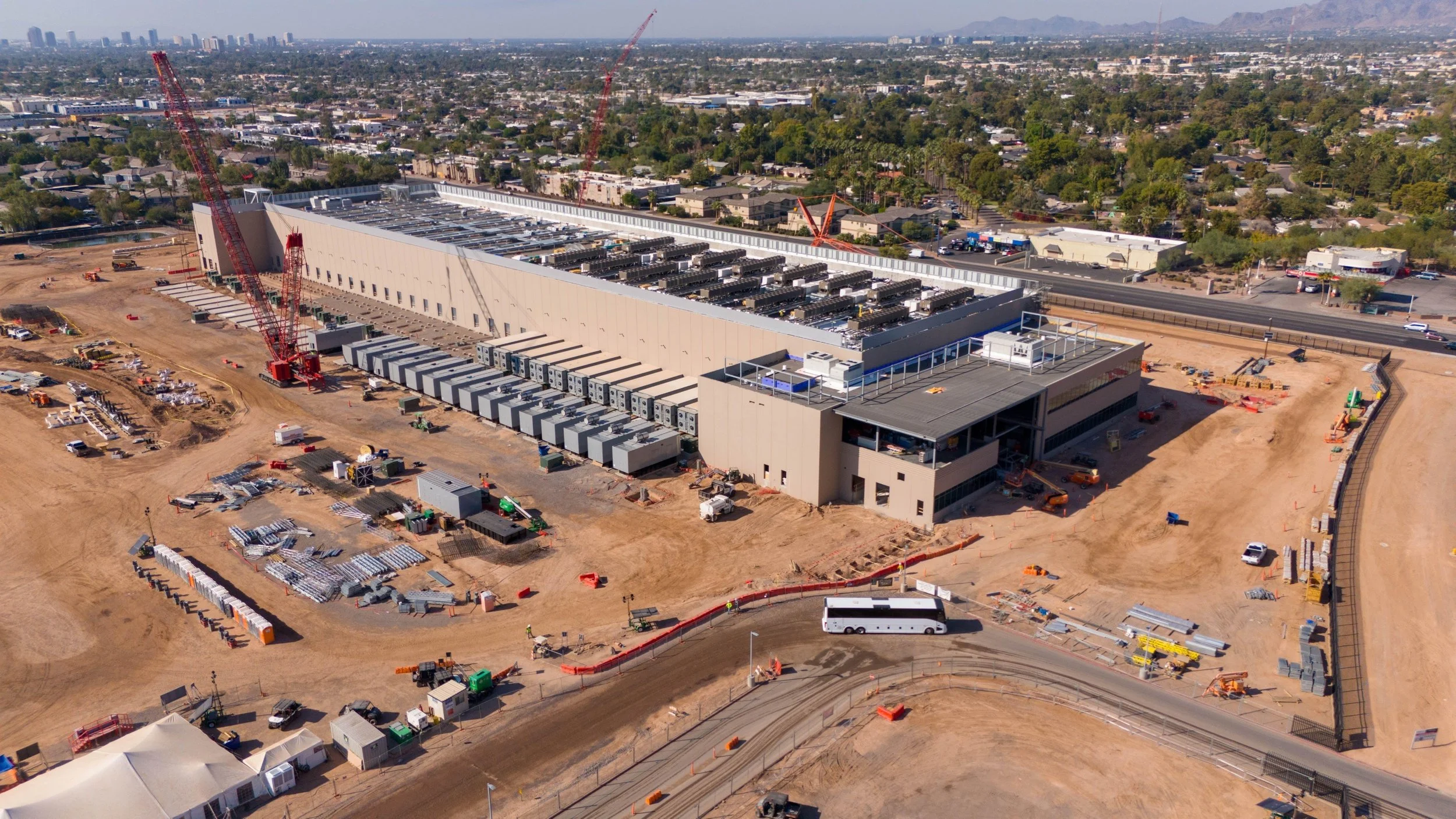

Mission-Critical & Data Center Utilities
Pinnacle Heavy is uniquely positioned to support Arizona’s booming technology sector. We understand the high stakes of hyperscale projects.

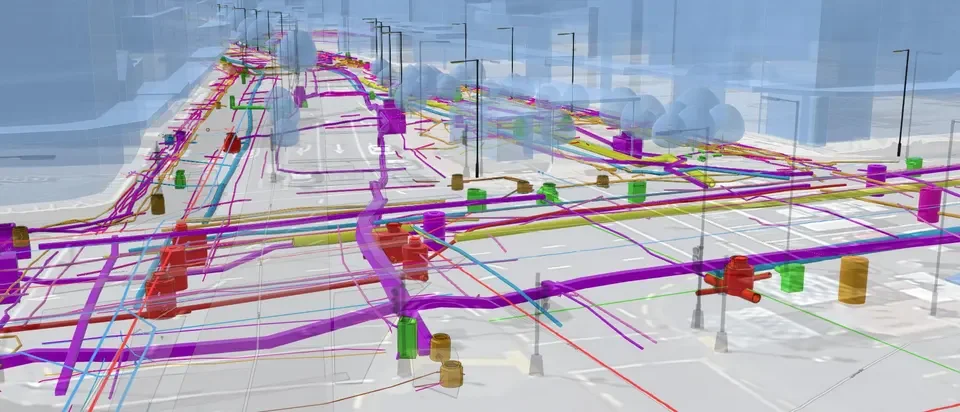

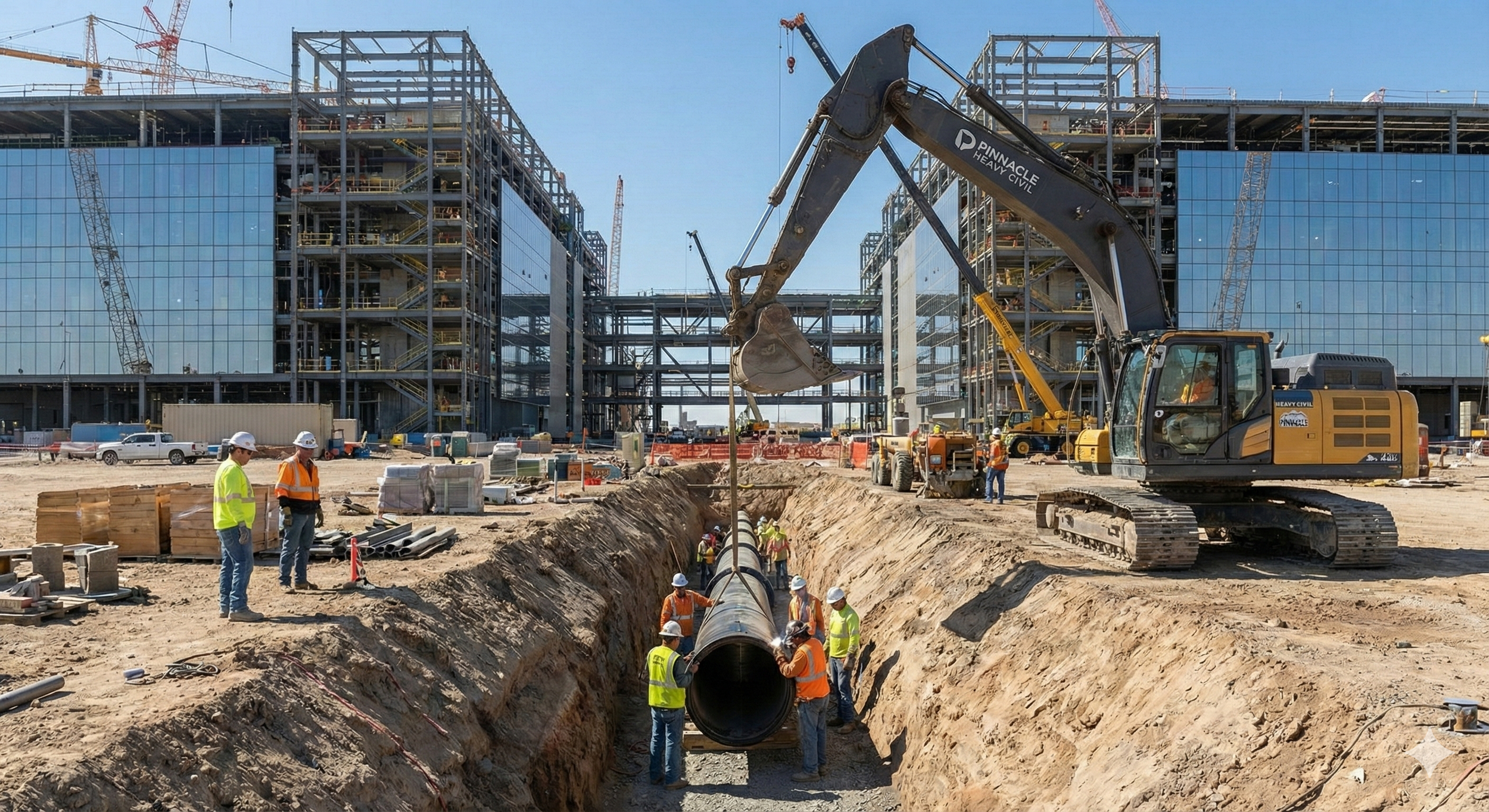

Data Center Wet Utilities: High-capacity cooling water loops and redundant water supply systems for hyperscale facilities.

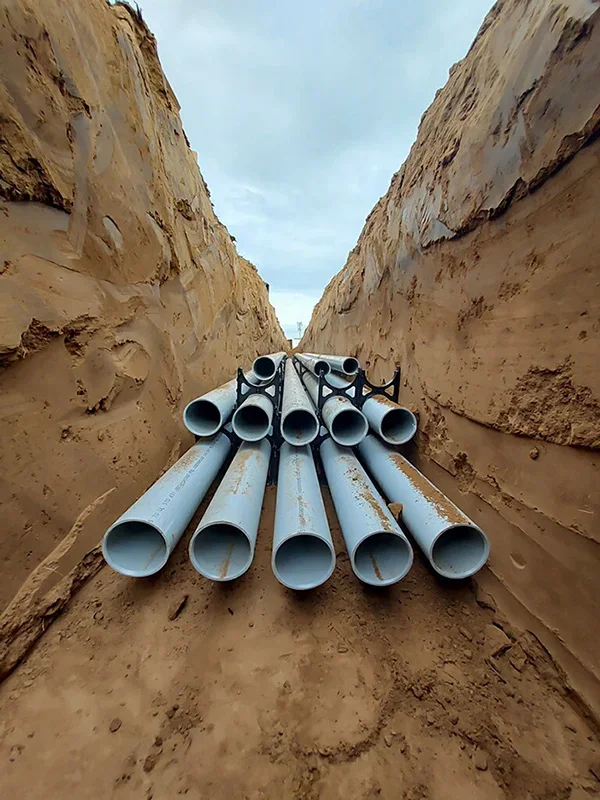

Conduit & Duct Banks: While on-site, we frequently manage civil trenching for fiber optic conduit and power duct banks, streamlining your underground schedule.
Emergency Wet Utility Repair: 24/7 rapid response for water main breaks or sewer failures to minimize downtime.
Why Arizona GCs Choose Us
Schedule Certainty: We own our heavy equipment, meaning we don't wait on rentals. When we say we will mobilize, we mobilize.
Safety First: Our EMR rating reflects our commitment to trench safety, shoring protocols, and OSHA compliance.
Quality Assurance: All installations include rigorous pressure testing, chlorination, and bacteria testing to ensure swift municipal acceptance.
Serving All Major Arizona Markets
Phoenix & Scottsdale: Urban infill and commercial redevelopment.
West Valley (Buckeye, Goodyear, Glendale): Industrial warehousing and logistics parks.
East Valley (Mesa, Chandler, Gilbert): Tech corridors and data center developments.
Ready to Break Ground? Don’t let underground obstacles delay your vertical construction. Partner with Arizona’s most reliable wet utilities contractor.
